Description

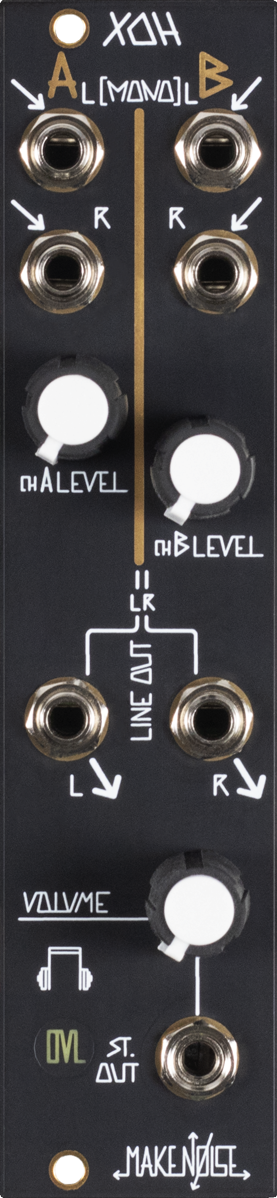

The XOH (miX Out Headphone) music synthesizer module is a stereo mixer, headphone amplifier and output interfacing module for your Eurorack synthesizer. It consists of two stereo input channels with independent level controls, and two stereo outputs: one pair of independent line level left and right outputs at unity gain; and one TRS headphone or line level output with dedicated level control.

Features

  • Works well with stereo modules: Erbe-Verb, Morphagene, QPAS, X-PAN, Mimeophon
  • Two mono/stereo input channels, ChA & ChB
  • Independent level controls for ChA & ChB
  • Two stereo outputs containing A/B mix
  • Independent unity gain L/R Line Level outputs
  • TRS Headphone and Line Level output with level control (same line drive circuit used in the CV Bus Case)
  • Adjust Modular Level signals down to Line Level with soft Limiting to protect your ears and line level gear

Specifications

  • Width: 6hp
  • Max Depth (incl. power cable): 24mm
  • Power: 40mA@ +12V 40mA @ -12V

$189.00
