Description

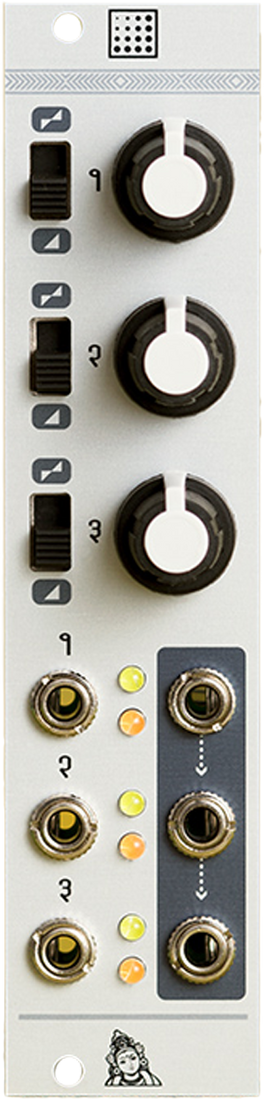

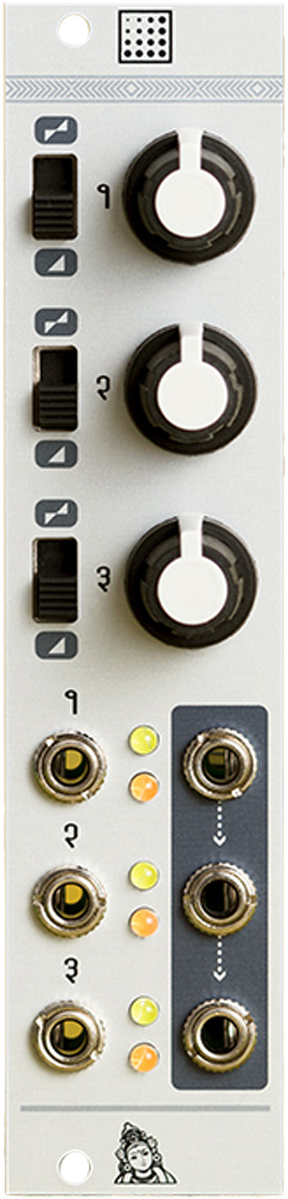

Shades provides 3 channels of audio/CV processing which can be configured either as active attenuators or as attenuverters.
Unconnected inputs are normalized to an internal precision voltage reference, which can produce either a +5V or +10V constant voltage.

Shades’ outputs are daisy-chained, allowing adjacent groups of 2 or 3 channels to be mixed together.

This 2020 revision matches the design language used in the most popular and recent Mutable Instruments modules like Marbles, Plaits or Rings.

Features

  • Mix audio sources or CVs.
  • Add offsets to CVs, or change their polarity.
  • Input impedance: 100k.
  • All inputs DC-coupled.
  • Low-distortion audio op-amps and thin film 0.1% resistors improve transparency in audio mixing applications, and allow exact unitary gains for precision summing of pitch CV signals.
  • Stable and precise voltage reference, independent of power supply fluctuations.

Specifications

  • Width: 6hp
  • Depth: 25mm
  • Power: +12V:15mA -12V:15mA

$189.00
