- Manual GATE buttons
- Three timing ranges: (1 second, 10second, 1minute A/D times)
- Normal and inverted outputs
- End of Decay (EOD) logic output
- Cycle mode (which GATE logic control)
- Retrig input (allows re-triggering of the envelope if source gate held high)
- Dynamic control of the envelope output level (each ADSR is routed through a linear VCA and the control is normalled to +5V via the LEVEL jack. You can patch another control source like an LFO or VELOCITY level from a keyboard to this jack.
Video

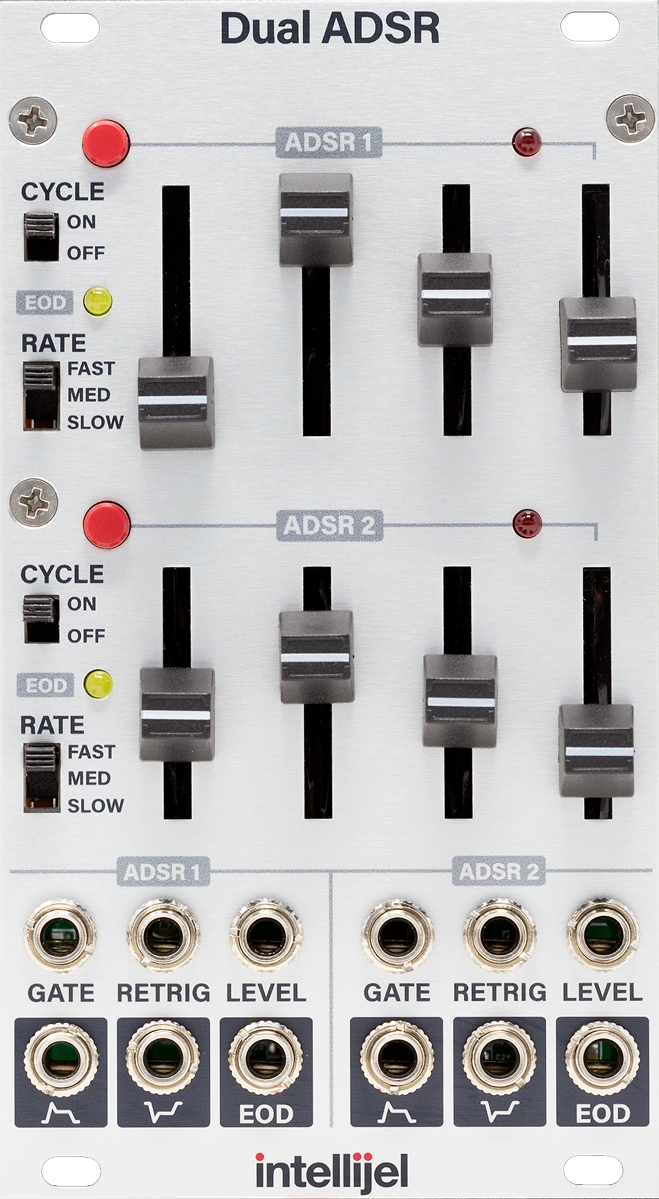

Dual ADSR 3U
Description
Snappy, classically analog envelopes with visually intuitive controls. Add trigger buttons, cycling and a variety of control voltage outputs—then double it—now you've got the Dual ADSR.
Features
Specifications
- Width: 14HP
- Width: 14HP
- Power: 60mA @+12V , 49mA @-12V
$369.00
