FX AID (Black)

Description

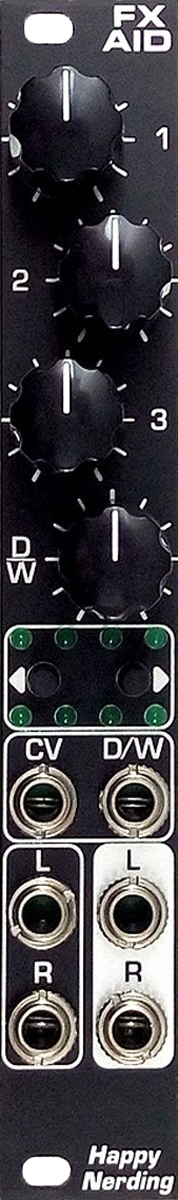

FX AID from Happy Nerding is a 4HP eurorack module running 32 unique audio effects arranged in 4 banks of 8 effects. It features three effect controls plus analogue Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets – stores selected program and all three controls.

Features

  • FX AID runs 32 unique audio effects arranged in 4 banks of 8 effects.
  • Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass.
  • Assignable CV input to effect controls or to Sample Rate Reducer (changes internal clock).
  • FX AID XL has separate CV modulation inputs for all three effect parameters plus Sample Rate Reducer (SRR) input.
  • Four user storable presets – stores selected program and all three controls. CV assign, presets and the last used effect are remembered and always available after power offs.
  • The module is not limited to the factory selected 32 effects: FX AID can be reflashed with other user selected Happy Nerding effects in any order.
  • Plus standalone FX AID editor application allows to load custom/free Spin programs.
  • Reflashing procedure is quite easy: playing 40 sec long “wav” file of line level amplitude to CV input for 4 HP version or SRR input for FX AID XL.
  • Reflashing mode: hold both buttons for 10 sec.
  • The available effects list is quite large and continues to grow. Please check the editor page for the available effects.
  • https://fxaid.app/
  • Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

Specifications

  • Width: 4HP
  • Depth:
  • Power:
