Verbos Electronics

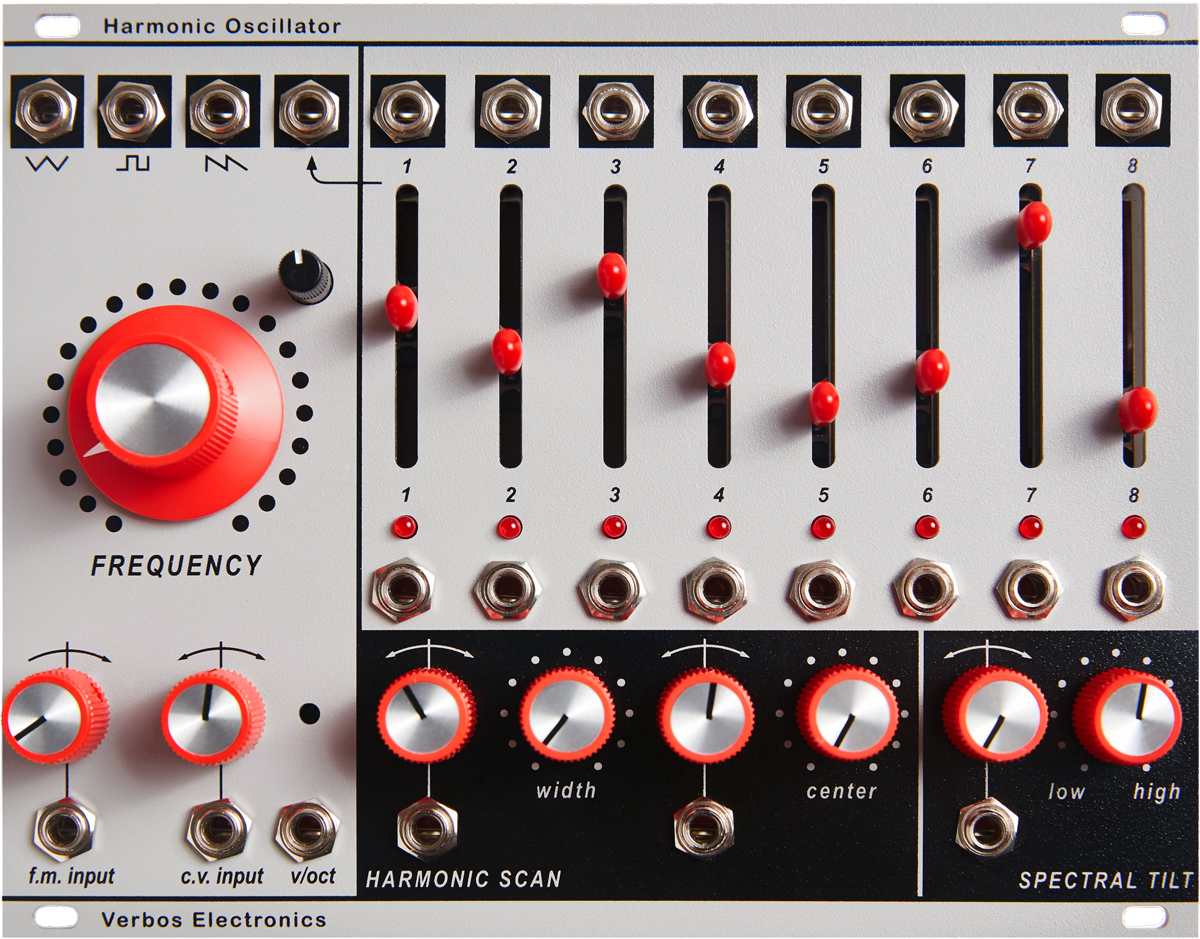

Harmonic Oscillator

Description

For the first time in Eurorack, this oscillator module provides outputs for the first 8 harmonics as sine waves. Also included are triangle, saw, square waves. A voltage controlled mixer with various methods of address allows the user to scan, tilt and mix the harmonics from both panel and external voltage control.

It is built on a discrete, all analog triangle core with an old school discrete transistor exponential converter. It has inputs for linear and exponential FM, the exponential with a reversing attenuator. Of course there's a 1 volt/octave trimmed CV input as well.

Specifications

  • With: • 32hp
  • Power: 20mA +12, 90mA -12

$1,499.00
